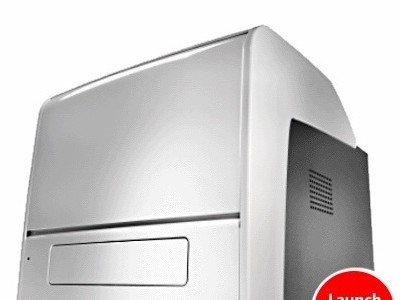

Thermo Scientific Varioskan LUX 微孔板读数仪
Thermo Scientific Varioskan LUX 微孔板读数仪
Thermo Scientific Varioskan LUX 微孔板读数仪
适用于多种多样的实验Varioskan LUX 是协助实验室科研的有力工具 您可以根据您的需求配置仪器，将来也可以对仪器进行升级支持以下测量技术：
吸光度（加上横杠，包括光程校正）
荧光强度（包括 FRET）
化学发光（直接读数，或滤光片读数，包括 BRET）
AlphaScreen / AlphaLISA
时间分辨荧光（包括 TR-FRET、hTRF）
技术参数：
| 产品规格 | Each |
|---|---|
| Measurement Technology | Absorbance, Fluorescence intensity, Luminescence, Time-resolved fluorescence and AlphaScreen |
| 测量类型 | End-point, kinetic, spectra, multipoint and kinetic spectra |
| 板类型 | 6 - 1536 well plates (absorbance 6 - 384 well plates) |
| 光源 | Xenon flash lamp and LED |
| 波长选择 | Absorbance: double monochromators; Fluorescence intensity: double excitation and emission monochromators; Time-resolved fluorescence: Filters; AlphaScreen: Filters; Double monochromators for spectral scanning |
| 波长范围 | Absorbance: 200 - 1000nm Fluorescence intensity: Excitation: 200 - 1000nm, Emission: 270 - 840nm Time-resolved fluorescence: Excitation 334nm, Emission 400 - 700nm Luminescence: 360 - 670nm AlphaScreen: Excitation 680nm, Emission 400 - 660nm |
| 线性 | 0 - 4Abs (96-well plate) at 450nm, ± 2% 0 - 3Abs (384-well plate) at 450nm, ± 2% |
| Read-out Range | 0 - 6Abs |
| 准确度 | 0.003Abs or ± 2%, at 200 - 399nm (0 - 2Abs) 0.003Abs or ± 1%, at 400 - 1000nm (0 - 3Abs) |
| 精密度 | SD < 0.001Abs or CV < 0.5%, at 450nm (0 - 3Abs) |
| 灵敏度 | Fluorescence intensity (top reading): < 0.4 fmol fluorescein/well (black 384-well plate) Fluorescence intensity (bottom reading): < 4 fmol fluorescein/well, (clear bottom black 384 square well plate) Time-resolved fluorescence: < 1 amol/well (white low volume 384 well plate)Luminescence: < 7 amol ATP/well (white 384-well plate) AlphaScreen: < 100 amol phosphotyrosine/well (384-well plate) |
| 动态范围 | Fluorescence intensity: top reading > 6 decades, bottom reading > 5.5 decades Time-resolved fluorescence: > 6 decades Luminescence: > 7 decades |
| 分液器数量 | Two |
| Dispense Volume | 2 - 5,000μL (1mL syringe) 5 - 25,000μL (5mL syringe) |
| 培养箱温度 | up to 45°C |
| 振荡 | Orbital |
| Measurement Speed | Reads a 96-well plate in 15 sec., a 384-well plate in 45 sec., and a 1536-well plate in 135 sec. (minimum times) |
| 接口 | PC Software (Thermo Scientific SkanIt Software) |
| Software Language Versions | English, German, French, Spanish, Portuguese, Italian, Japansese, Chinese and Russian |
| 深度（公制） | 58cm |
| 深度（英制） | 23 in. |
| 宽度（公制） | 53cm |
| 宽度（英制） | 21 in. |
| 高度（公制） | 51cm |
| 高度（英制） | 20 in. |
| 重量（公制） | 59 kg |
| 重量（英制） | 130 lb. |
| 读取选项 | Top and bottom |
